Cable Lugs
Cable Lugs Manufacturer
A Cable Lugs Manufacturer plays an important role in supplying reliable electrical termination components for power distribution, industrial wiring, control panels, transformers, switchgear, and electrical installations. Cable Lugs are designed to create a secure connection between electrical cables and equipment terminals, helping maintain proper current flow while reducing the possibility of loose connections and overheating in Kolkata, West Bengal, Bihar, Jharkhand, Chhattisgarh, and Assam.
Manufactured from electrically conductive metals and available in different sizes and configurations, cable lugs can be selected according to cable cross-section, conductor material, terminal requirements, and application conditions.

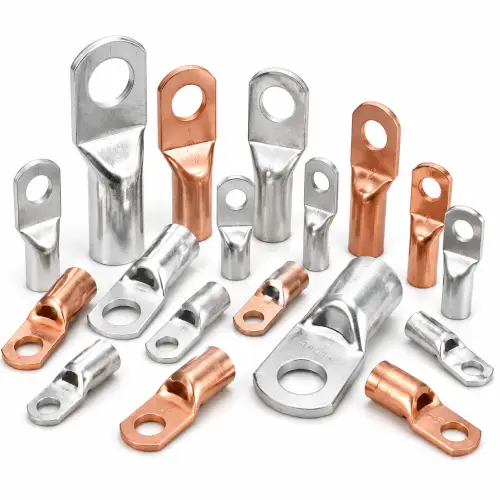

Types of Cable Lugs

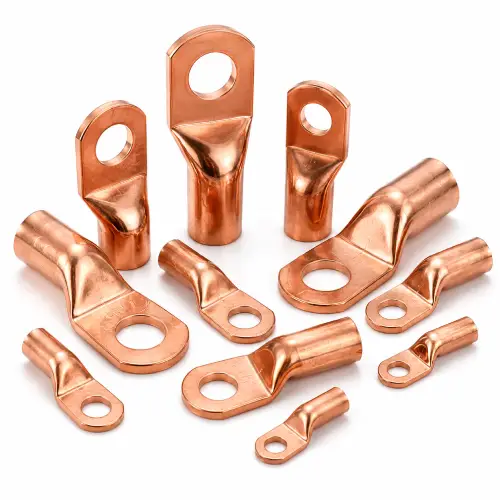

Copper Lugs
Copper Lugs are widely used for electrical cable termination because copper offers excellent electrical conductivity and good mechanical strength. These lugs are suitable for connecting copper conductors to busbars, circuit breakers, switchgear, distribution boards, transformers, and other electrical equipment.
Copper cable lugs are available in different hole sizes, barrel lengths, cable entry dimensions, and configurations to suit various installation requirements. They are commonly preferred in industrial and commercial electrical systems where dependable and low-resistance connections are required.
Key features of Copper Lugs:
- Excellent electrical conductivity
- Strong and durable construction
- Secure cable termination
- Available in multiple sizes
- Suitable for high-current electrical applications
- Easy to install with suitable crimping tools
- Useful for panels, switchgear and power distribution systems

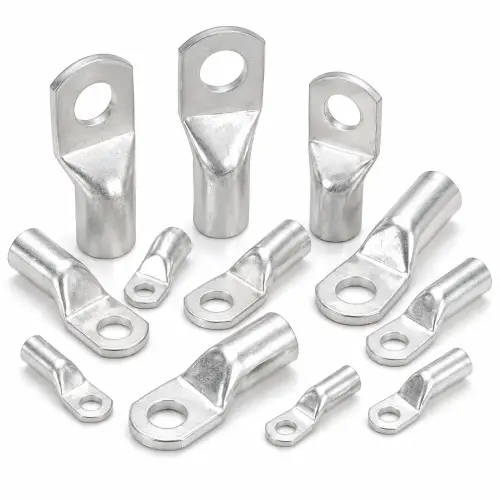

Aluminium Lugs
Aluminium Lugs are designed for terminating aluminium conductors and are commonly selected where lightweight electrical connection components are required. They provide a practical solution for connecting aluminium cables with electrical equipment, busbars and distribution systems.
Aluminium cable lugs are available in different dimensions to accommodate various conductor sizes. Depending on the application, suitable surface treatment or compatible connection methods can help improve contact reliability and resistance to environmental conditions.
Key features of Aluminium Lugs:
- Lightweight construction
- Suitable for aluminium conductors
- Good electrical performance
- Available in various cable sizes
- Suitable for power distribution applications
- Designed for reliable mechanical termination
- Useful in industrial and commercial installations
Why Cable Lugs Are Important in Electrical Installations
A properly selected cable lug provides a firm electrical and mechanical connection between a cable and its termination point. Using the correct lug size helps ensure proper contact between the conductor and terminal while supporting safe and efficient operation.
Cable lugs are particularly useful in applications where cables need to be connected repeatedly or securely to equipment such as MCC panels, PCC panels, distribution boards, transformers, motors, generators, switchgear, busbars and control panels.
Cable Lug Selection Guide
Choosing the right cable lug depends on several technical factors:
Selection Factor | Requirement |
Conductor Material | Copper or Aluminium |
Cable Size | Select according to conductor cross-section |
Lug Material | Match the conductor and application |
Stud/Hole Size | Match the terminal or busbar connection |
Installation Method | Crimping or other approved termination method |
Operating Environment | Consider moisture, temperature and corrosion |
Application | Panel, transformer, switchgear, motor, busbar, etc. |
The lug should be properly matched with the cable and terminal to achieve a dependable connection. Incorrect sizing can lead to poor contact, excessive resistance and unwanted heating.
Applications of Cable Lugs
Cable lugs are used across a wide range of electrical and industrial applications, including:
- Electrical control panels
- Power distribution boards
- MCC and PCC panels
- Transformers
- Switchgear
- Circuit breakers
- Motors and generators
- Busbar connections
- Industrial machinery
- Solar power installations
- Power plants
- Commercial electrical systems
- Infrastructure projects
- Manufacturing facilities
Quality Considerations for Cable Lugs
A reliable Cable Lugs manufacturer focuses on material quality, dimensional accuracy, mechanical strength and consistent manufacturing. Properly manufactured lugs should provide a stable connection and be compatible with the intended cable and terminal arrangement.
Important quality parameters may include material composition, barrel dimensions, palm thickness, hole diameter, surface finish, crimping compatibility and dimensional consistency.
Cable Lugs Manufacturer for Industrial Requirements
As an experienced Cable Lugs Manufacturer, we provide electrical termination solutions designed for different cable sizes and industrial requirements. Our range includes Copper Lugs and Aluminium Lugs, manufactured for applications involving power distribution, electrical panels, transformers, switchgear and industrial equipment.
We understand that every electrical installation may have different cable and terminal requirements. Therefore, cable lugs can be selected based on conductor size, material, hole diameter and application specifications.
Why Choose a Reliable Cable Lugs Manufacturer?
- Consistent product quality
- Suitable options for different cable sizes
- Copper and aluminium variants
- Accurate dimensions
- Reliable electrical termination
- Industrial application suitability
- Bulk supply capability
- Technical product guidance
- Focus on customer requirements
- Suitable for commercial and industrial projects
Frequently Asked Questions
A cable lug is an electrical termination component used to connect a cable or conductor securely to equipment terminals, busbars, switchgear and other electrical connection points.
Two commonly used types are Copper Lugs and Aluminium Lugs. The appropriate type depends primarily on the conductor material and the requirements of the electrical installation.
Copper lugs are commonly used with copper cables in electrical panels, transformers, switchgear, motors, generators, busbars and power distribution systems.
Aluminium lugs are generally used for terminating aluminium conductors in power distribution and other electrical installations where aluminium cables are specified.
The cable lug should be selected according to the cable size, conductor material, terminal/stud size, application and installation method. Correct sizing is essential for a secure and dependable connection.
